LED| Sequence | Photo | Lens | Files | FWHM | Phase Space Angle | Cd/Klm | Angle of Lux @ 4m | Diameter | Height |
|---|---|---|---|---|---|---|---|---|---|

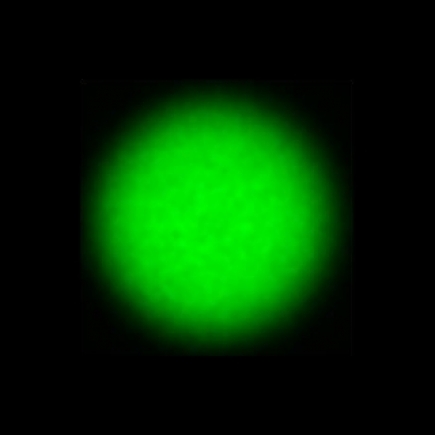

| 1. |  | CTZ_CLU710V1a_NIO2231 | 22° | 31° | 5,511 | 17.7 lux | 38 mm | 21 mm | |

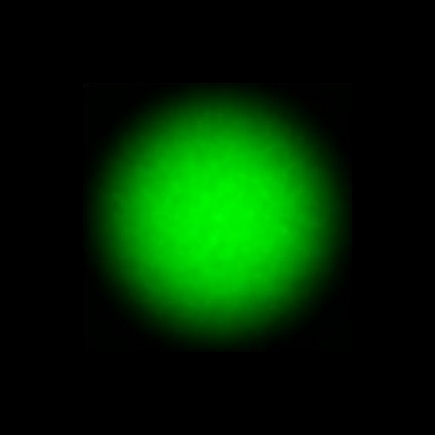

| 2. |  | CTZ_CLU710V1a_NIO2635 | 26° | 35° | 4,360 | 13.9 lux | 36.5 mm | 19 mm | |

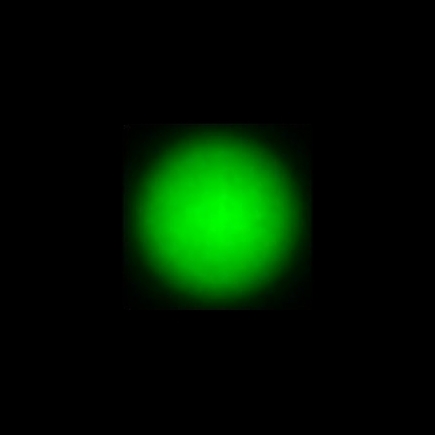

| 3. |  | CTZ_CLU710V1a_NIO3545 | 35° | 45° | 2,583 | 8.2 lux | 31 mm | 17 mm | |

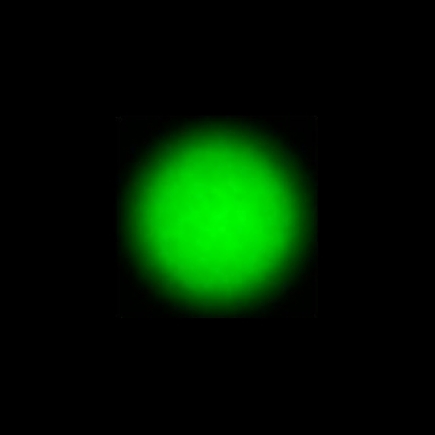

| 4. |  | CTZ_CLU710V1a_NIO3847 | 38° | 47° | 2,131 | 6.8 lux | 33 mm | 17 mm | |

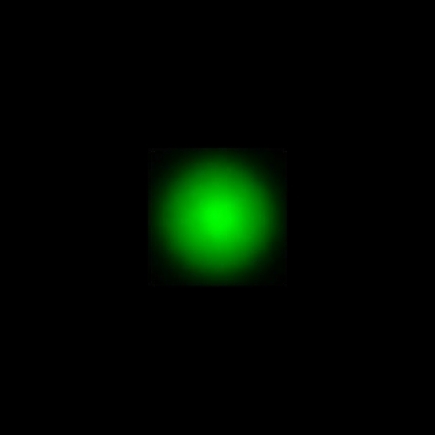

| 5. |  | CTZ_CLU710V1a_NIO4255 | 42° | 55° | 1,786 | 5.7 lux | 32 mm | 15 mm | |

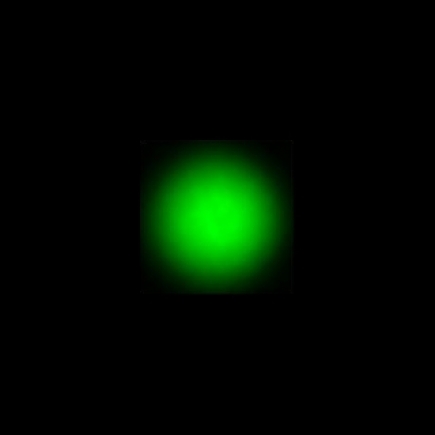

| 6. |  | CTZ_CLU710V1a_NIO4562 | 45° | 62° | 1,340 | 4.3 lux | 26 mm | 11.6 mm | |

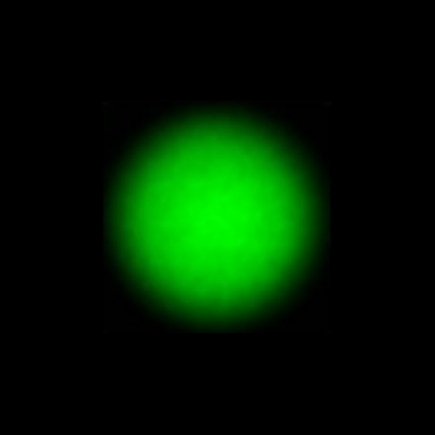

| 7. |  | CTZ_CLU710V1a_NIO5466 | 54° | 66° | 1,049 | 3.3 lux | 27 mm | 12 mm |
