Sequence	LED	Lens	FWHM	Phase Space Angle	Cd/Klm	Angle of Lux @ 4m	Diameter	Height

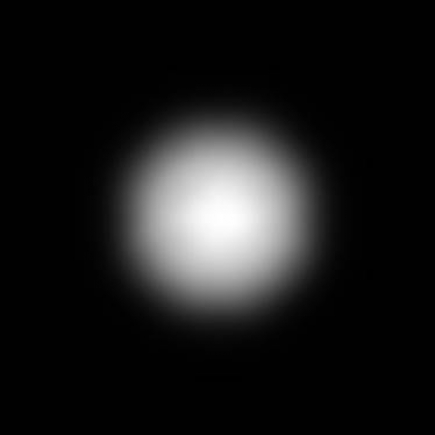

1.	Bridgelux/H-Series/H12	BRX_H12_NIO2332	23°	32°	5,340	1,835.3 lux	53.5 mm	32 mm

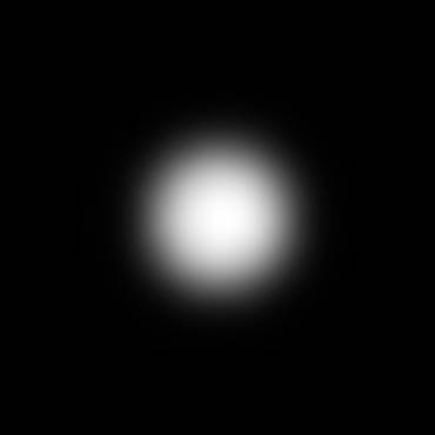

2.	Bridgelux/H-Series/H12	BRX_H12_NIO2735	27°	35°	4,537	1,559.2 lux	53 mm	32 mm

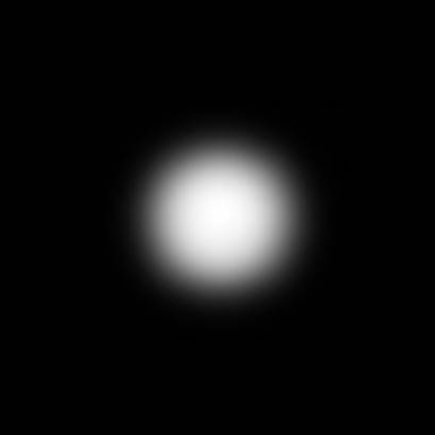

3.	Bridgelux/H-Series/H12	BRX_H12_NIO2940	29°	40°	3,683	1265.5 lux	51 mm	28 mm

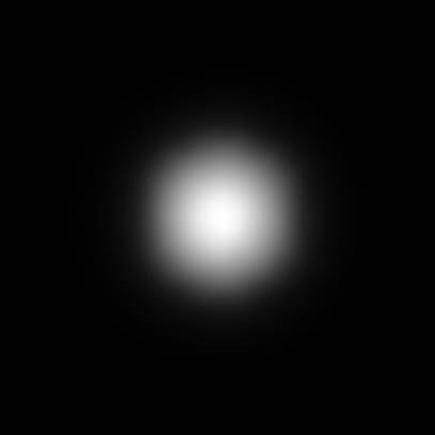

4.	Bridgelux/H-Series/H12	BRX_H12_NIO3645	36°	45°	2,608	886.7 lux	50 mm	27.7 mm

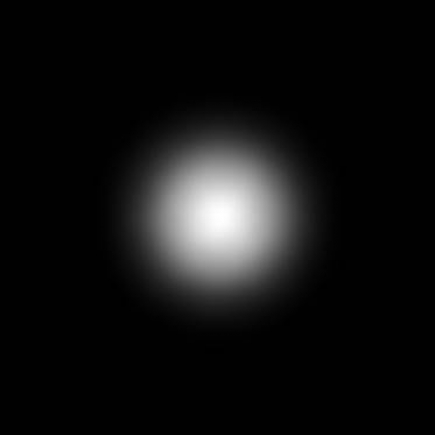

5.	Bridgelux/H-Series/H12	BRX_H12_NIO3549	35°	49°	2,646	892.8 lux	49 mm	25 mm

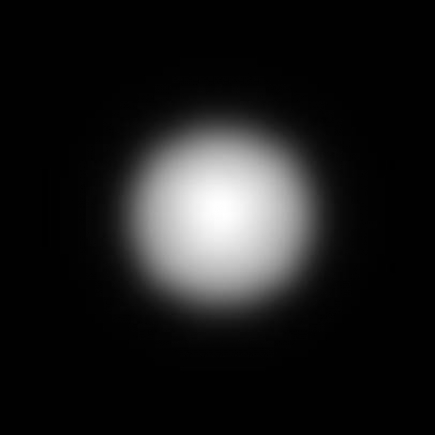

6.	Bridgelux/H-Series/H12	BRX_H12_NIO4360	43°	60°	1,620	556.9 lux	37 mm	16 mm

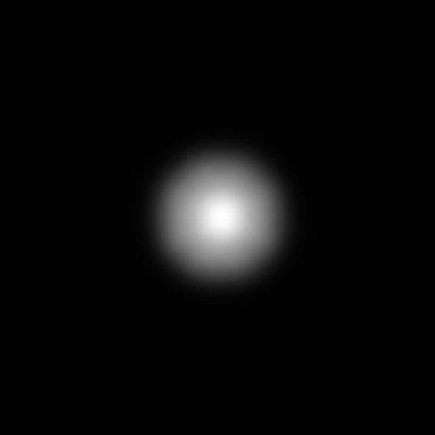

7.	Bridgelux/H-Series/H12	BRX_H12_NIO5773	57°	73°	983	329.9 lux	39 mm	15 mm

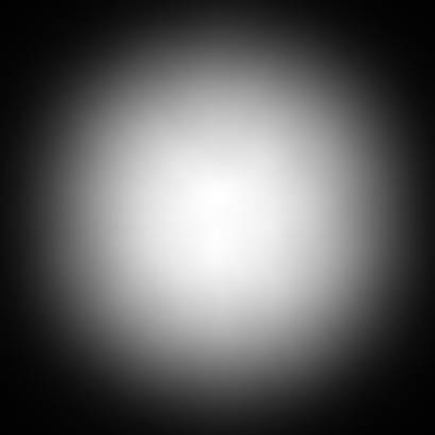

8.	Bridgelux/H-Series/H15	BRX_H15_NIO1930	19°	30°	7,767	3,689.3 lux	72 mm	41 mm
9.	Bridgelux/H-Series/H15	BRX_H15_NIO2533	25°	33°	5,040	lux	69 mm	39 mm
10.	Bridgelux/H-Series/H15	BRX_H15_NIO3039	30°	39°	3,356	1,576.2 lux	56 mm	33 mm
11.	Bridgelux/H-Series/H15	BRX_H15_NIO3445	34°	45°	2,712	lux	50 mm	27.7 mm
12.	Bridgelux/H-Series/H15	BRX_H15_NIO3648	36°	48°	2,538	1,198.9 lux	66 mm	32.5 mm
13.	Bridgelux/H-Series/H15	BRX_H15_NIO3250	32°	50°	2,974	1,412.6 lux	73 mm	35 mm
14.	Bridgelux/H-Series/H15	BRX_H15_NIO4257	42°	57°	1,819	853 lux	60 mm	26.5 mm
15.	Bridgelux/H-Series/H15	BRX_H15_NIO4764	47°	64°	1,285	609.7 lux	43 mm	17.6 mm
16.	Bridgelux/H-Series/H6	BRX_H6_NIO1525	15°	25°	11,665	838.4 lux	40 mm	21.4 mm
17.	Bridgelux/H-Series/H6	BRX_H6_NIO1828	18°	28°	9,035	649.3 lux	39 mm	21.4 mm
18.	Bridgelux/H-Series/H6	BRX_H6_NIO2335	23°	35°	5,288	380 lux	37 mm	17.7 mm
19.	Bridgelux/H-Series/H6	BRX_H6_NIO2535	25°	35°	4,469	320.3 lux	33 mm	17 mm
20.	Bridgelux/H-Series/H6	BRX_H6_NIO3142	31°	42°	3,304	235.5 lux	29 mm	13.6 mm
