All Lenses| Sequence | LED | Photo | Lens | Files | FWHM | Phase Space Angle | Cd/Klm | Angle of Lux @ 4m | Diameter | Height |
|---|---|---|---|---|---|---|---|---|---|---|

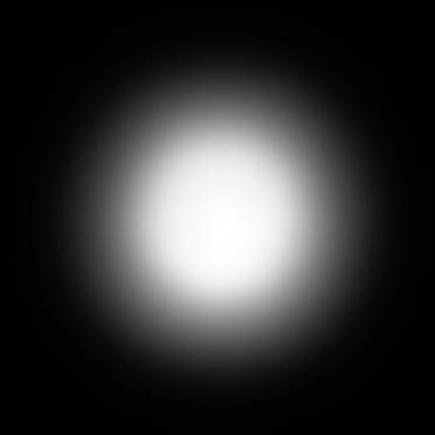

| 801. | Citizen/V2/CLL 042 - 1818 A5 |  | CTZ_CLL042V2a_NIO3445 | 34° | 45° | 5,835 | 168 lux | 89 mm | 43 mm | |

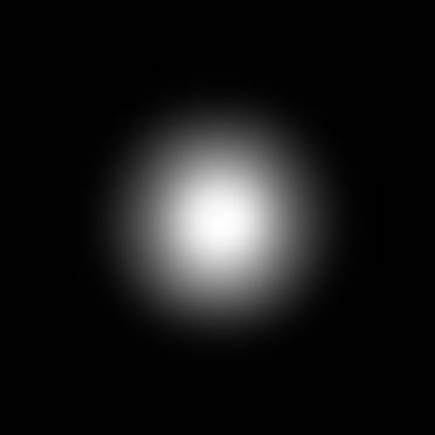

| 802. | Citizen/V2/CLL 042 - 1818 A5 |  | CTZ_CLL042V2a_NIO4253 | 42° | 53° | 1,774 | 118.6 lux | 85.5 mm | 42.6 mm | |
| 803. | Citizen/V2/CLL 042 - 1818 A5 |  | CTZ_CLL042V2a_NIO5366 | 53° | 66° | 1,071 | 69.9 lux | 60 mm | 27 mm | |
| 804. | Citizen/V2/CLL 042 - 1818 A5 |  | CTZ_CLL042V2a_NIO6475 | 64° | 75° | 709 | 47.1 lux | 70 mm | 24 mm | |
| 805. | Citizen/V2/CLL 052 - 1825 B1 |  | CTZ_CLU052V2a_NIO2943 | 29° | 43° | 3,809 | 23.8 lux | 137 mm | 77 mm | |
| 806. | Citizen/V2/CLL 052 - 1825 B1 |  | CTZ_CLU052V2a_NIO3045 | 30° | 45° | 3,536 | 21.9 lux | 137 mm | 77 mm | |
| 807. | Citizen/V2/CLL 052 - 1825 B1 |  | CTZ_CLU052V2a_NIO4056 | 40° | 56° | 2,178 | 13.4 lux | 178 mm | 88 mm | |
| 808. | Citizen/V2/CLL 052 - 1825 B1 |  | CTZ_CLU052V2a_NIO4461 | 44° | 61° | 1,804 | 10.8 lux | 117 mm | 58.5 mm | |
| 809. | Citizen/V2/CLL 052 - 1825 B1 |  | CTZ_CLU052V2a_NIO4765 | 47° | 65° | 1,516 | 9.4 lux | 115 mm | 53.5 mm | |
| 810. | Citizen/V2/CLL 052 - 1825 B1 |  | CTZ_CLU052V2a_NIO4866 | 48° | 66° | 1,471 | 9.1 lux | 111 mm | 51 mm |
